使用 Renderer 组件 ​

除了集成式的 Chat 组件外，还提供了核心渲染器 Renderer 组件（GenuiRenderer），您可以使用其进行更自由的逻辑组合、更精密流程控制。本节展示一个最小可用示例：使用浏览器原生 fetch 发起 流式请求，然后把流式返回的 schema 片段交给 GenuiRenderer 渲染。

使用 fetch 请求服务，处理流式返回 ​

创建一个文件 fetch-schema-stream.ts, 文件中的处理逻辑都是基于 OpenAI 兼容格式处理：

typescript
export async function fetchSchemaStream(
  url: string,
  userInput: string,
  onSchemaUpdate: (schemaChunk: string) => void,
): Promise<void> {
  const response = await fetch(url, {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify({
      messages: [{ role: 'user', content: userInput }],
      model: 'deepseek-v3.2',
      stream: true,
    }),
  });

  if (!response.ok) {
    throw new Error(`HTTP error! status: ${response.status}`);
  }

  const reader = response.body.getReader();
  const decoder = new TextDecoder('utf-8');
  let buffer = '';

  let inSchemaStream = false;
  let bufferText = '';
  let schemaFinished = false;
  const startFlag = '```schemaJson';
  const endFlag = '```';

  // 检测 schema 开始标记
  const isSchemaJsonStart = (str: string): boolean => {
    const index = str.indexOf('`');
    if (index === -1) return false;
    return startFlag.startsWith(str.substring(index, index + startFlag.length));
  };

  // 检测 schema 结束标记
  const isSchemaJsonEnd = (str: string): boolean => {
    const index = str.lastIndexOf('\n');
    if (index === -1) return false;
    const newStr = str.slice(index).trim().substring(0, endFlag.length);
    return endFlag.startsWith(newStr);
  };

  try {
    while (true) {
      const { done, value } = await reader.read();
      if (done) break;

      buffer += decoder.decode(value, { stream: true });

      while (true) {
        const lineEndIndex = buffer.indexOf('\n');
        if (lineEndIndex === -1) break;

        const line = buffer.slice(0, lineEndIndex).trim();
        buffer = buffer.slice(lineEndIndex + 1);

        if (!line.startsWith('data: ')) continue;

        const dataStr = line.slice(6);

        if (dataStr === '[DONE]' || schemaFinished) {
          return;
        }

        try {
          const chunk = JSON.parse(dataStr);
          const content = chunk.choices?.[0]?.delta?.content;

          if (!content) continue;

          const deltaPart = bufferText + content;

          // 检测是否进入或退出 schema 流
          if ((!inSchemaStream && isSchemaJsonStart(deltaPart)) || (inSchemaStream && isSchemaJsonEnd(deltaPart))) {
            const matchFlag = inSchemaStream ? /(\n\s*)```/ : startFlag;
            const matchPart = deltaPart.match(matchFlag)?.[0];

            if (!matchPart) {
              // 标记不完整，保留到下次
              bufferText = deltaPart;
              continue;
            }

            if (inSchemaStream) {
              const trimmedDelta = deltaPart.trim();
              const [schemaPart] = trimmedDelta.split(matchPart);
              if (schemaPart) {
                onSchemaUpdate(schemaPart);
              }
              schemaFinished = true;
              return;
            } else {
              const trimmedDelta = deltaPart.trim();
              const [, schemaPart] = trimmedDelta.split(matchPart);
              inSchemaStream = true;
              bufferText = '';
              if (schemaPart) {
                onSchemaUpdate(schemaPart);
              }
              continue;
            }
          }

          bufferText = '';
          if (inSchemaStream) {
            onSchemaUpdate(deltaPart);
          }
        } catch (e) {
          console.error('解析后端数据失败:', e, dataStr);
        }
      }
    }
  } finally {
    reader.releaseLock();
  }
}

使用 Renderer 组件接受流式返回的 schemaJson ​

创建一个简单的 Vue 组件，包含输入框、发送按钮和渲染区域，配置一下能够生成 schemaJson 的 LLM 服务：

vue
<template>
  <div class="demo-container">
    <div class="input-group">
      <input v-model="inputText" placeholder="请输入问题..." @keyup.enter="handleSend" />
      <button @click="handleSend">发送</button>
    </div>
    <GenuiRenderer :content="schema" :key="rendererKey" />
  </div>
</template>

<script setup lang="ts">
import { ref } from 'vue';
import { GenuiRenderer } from '@opentiny/genui-sdk-vue';
import { fetchSchemaStream } from './fetch-schema-stream';

const inputText = ref('');
const schema = ref<any>({ componentName: 'Page', children: [] });
const rendererKey = ref(0);
const generating = ref(false);

const handleSend = async () => {
  if (!inputText.value.trim() || generating.value) return;

  generating.value = true;
  schema.value = '';
  rendererKey.value++;
  const userInput = inputText.value;
  inputText.value = '';

  try {
    await fetchSchemaStream('https://your-chat-backend/api', userInput, (schemaChunk) => {
      schema.value += schemaChunk;
    });
  } catch (error) {
    console.error('请求失败:', error);
  } finally {
    generating.value = false;
  }
};
</script>

<style scoped>
.demo-container {
  padding: 16px;
  box-sizing: border-box;
}

.input-group {
  display: flex;
  gap: 8px;
  margin-bottom: 16px;
}

input {
  flex: 1;
  padding: 8px 12px;
  border: 1px solid #ddd;
  border-radius: 4px;
}

button {
  padding: 8px 16px;
  background: #1890ff;
  color: white;
  border: none;
  border-radius: 4px;
  cursor: pointer;
}
</style>

输入问题立即体验 ​

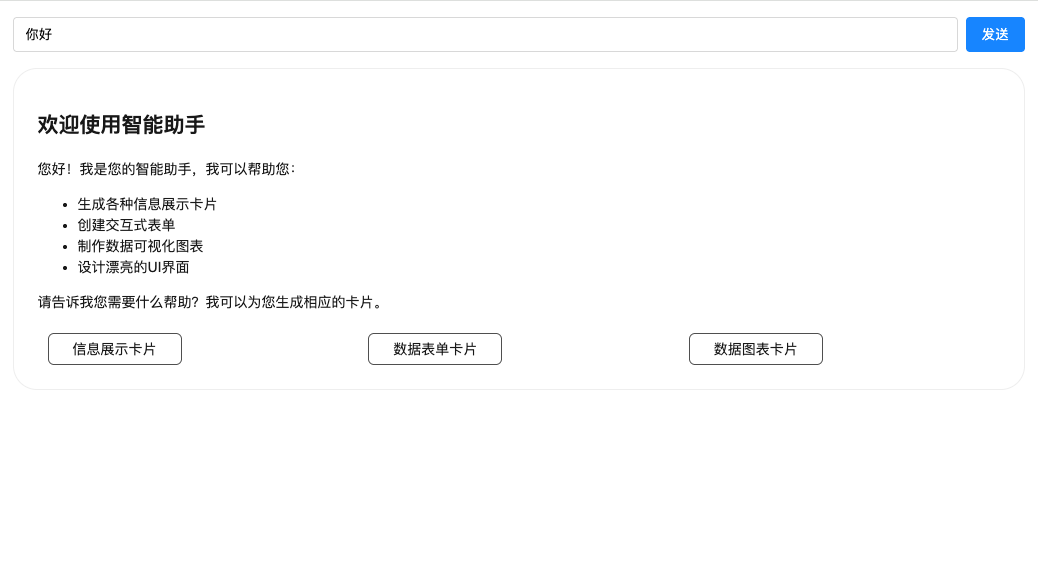

本示例使用 deepseek-v3.2 测试返回如下：

使用 Renderer 组件示例

其他相关文档 ​
